The Northwest Passage in 2026

For those of you unfamiliar with the names of the assorted islands and channels of the Canadian Arctic Archipelago here is a map that hopefully helps:

Plus another map detailing the routes through the Canadian Arctic Archipelago that have previously been successfully navigated by vessels large and small:

The sea ice in Lancaster Sound and the Amundsen Gulf is breaking up, and melt ponds are now visible on the fast ice across much of the southern route through the Canadian Arctic Archipelago:

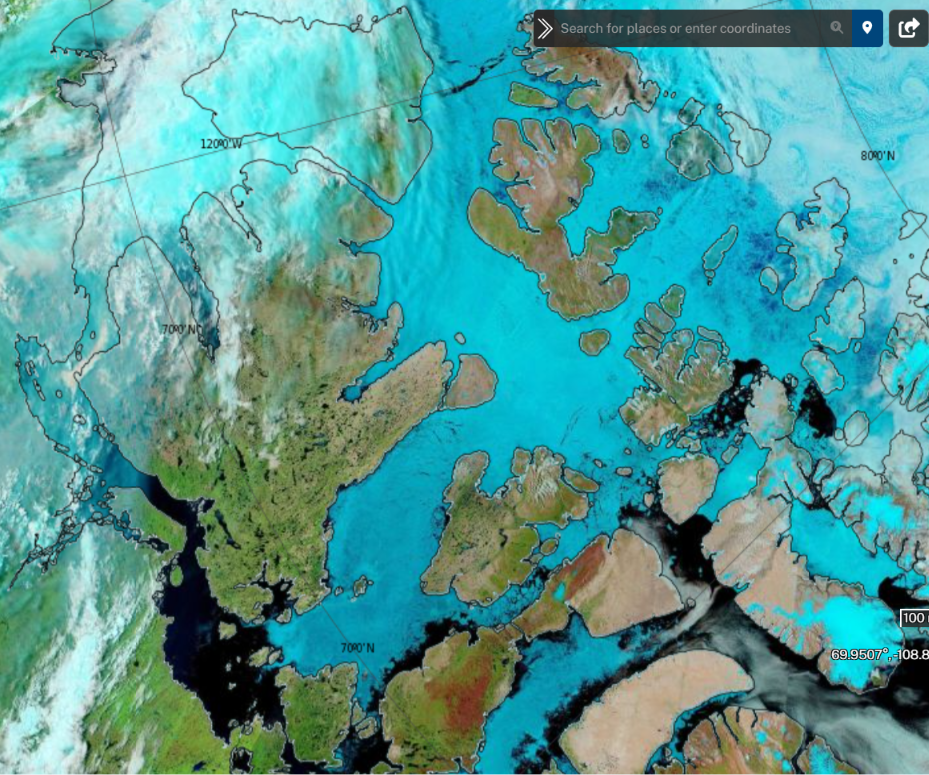

“False colour” image of the Canadian Arctic Archipelago on June 17th from the MODIS instrument on the Terra satellite

The melt ponds previously visible in the Coronation Gulf now appear to have drained:

“False colour” image of the Canadian Arctic Archipelago on June 3rd from the MODIS instrument on the Aqua satellite

Looking at 2 dimensional data to begin with, CAA sea ice area is currently in the middle of the AMSR2 era pack:

To get a better feel for what might happen during the coming summer season here too is the state of play in the third dimension, courtesy of the Alfred Wegener Institute’s last combined thickness data of the winter from the Cryosat-2, Sentinel 3 and SMOS satellites:

Let’s also take a look at the Canadian Ice Service‘s sea ice “stage of development” charts. Here’s the most recent one for the “Western Arctic”, from June 15th:

There is no old ice anywhere on the southern route, so the stage seems set for the Northwest Passage to open relatively early this summer, with a final “choke point” in the Larsen Sound/Franklin Strait region.

Note that there is a potential fly in the NWP ointment, a recurrence of last year’s winds that blew old ice in the Beaufort Sea close to shore in the Amundsen Gulf during the first half of August!

Watch this space!

The Northwest Passage in 2021

Prompted by a comment on the Northwest Passage thread from last year I’m opening the 2021 equivalent earlier than usual, in part because there’s already a lot going on of interest. First of all let’s get our bearings with the help of this map of the area:

and another map detailing the routes through Canadian Arctic Archipelago that have previously been successfully traversed:

The forecast high pressure has arrived and the skies have cleared over the Beaufort Sea, which reveals that the land-fast ice off the Mackenzie Delta has started breaking up:

In addition the snow has been melting along the valley of the Mackenzie River, and the resulting increased flow at the mouth of the delta is flooding the fast ice:

Continue reading The Northwest Passage in 2021

The Northwest Passage in 2018

The time has come to start speculating about if, and when, the Northwest Passage will become navigable for the host of small vessels eager to traverse it this summer. Almost one month later than in 2017!

Whilst the eastern and western entrances to the assorted routes through the Canadian Arctic Archipelaga have been empty of sea ice for quite some time, the central section between Bellot Strait and Gjoa Haven and/or Cambridge Bay is still chock a block:

In the east here is a drone’s eye view of Cumming Inlet, courtesy of the Polish team of Michał and Ola Palczyński aboard S/V Crystal:

created by dji camera
created by dji camera

It’s not entirely clear when that picture was taken, since according to Michał’s blog:

The waters beyond the Bellot Strait are covered with impassable ice, and the ice in the Beaufort Sea has 90% concentration in some places and reaches up to the shore. In this difficult situation, by 15th August two yachts have already given up and turned back to Greenland (including Blue Peter from our cove).

Here’s what lies ahead of Crystal and her remaining companions, according to the Canadian Ice Service:

Maud_201808181800

Meanwhile in the Beaufort Sea S/V Dogbark has been battling her way through that “90% concentration” sea ice. Dogbark has now made it as far as Mikkelsen Bay, just past Prudhoe Bay in Alaska:

2018-08-19_1149-DogBark

Here is the United States’ National Weather Service map of sea ice concentration in the area:

2018-08-19_NWS

According to a recent Q&A session on the Dogbark blog:

What does 7/10ths ice mean? We don’t want to know! It is more ice than we want to try and pass, that’s for sure. But the ice charts we look at refer to ice by % of sea coverage, so 7/10ths would look like water mostly covered by large, immovable objects. 5/10ths was as much as we have seen, and we got out of there as fast as we could with some help from our flying eyeball. See Dogbark’s Facebook page for a quick snippet of less dangerous ice.

Meanwhile the Canadian icebreaker CCGS Amundsen has sailed past Arctic Bay and Resolute:

Amundsen-2018-08-19_1400

I cannot help but wonder what vessels might be closely following in his wake?



[Edit – September 7th]

Finally there comes news that a “pleasure craft” has made it through the Canadian Arctic Archipelago from east to west as far as Tuktoyaktuk. I’d been wondering which vessel it was that seemed immobile near the western end of the Bellot Strait on the MarineTraffic maps. This one’s from August 19th:

MarineTraffic-2018-08-19_2330-Crop

Now I know! Thanks to a heads up on the Arctic Sea Ice Forum I’ve discovered that it’s the S/V Thor. Here’s the tracking map of his efforts to get through all the old ice in the vicinty.

2018-09-07-Thor-Bellot

The map reveals that Thor made it through the Bellot Strait on August 6th, but didn’t manage to make significant headway out of the Franklin Strait until August 28th.

Thor departed from Tuk earlier today:

Thor-2018-09-07-2000

He now only has this to contend with:

Beaufort-Conc-20180907
